Insert Mobile Vet Clinic

Diplomat II

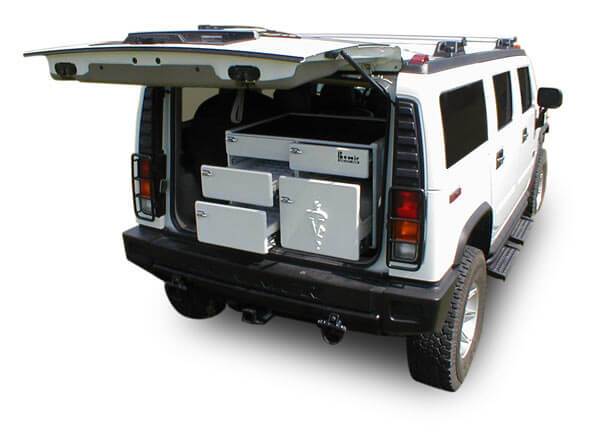

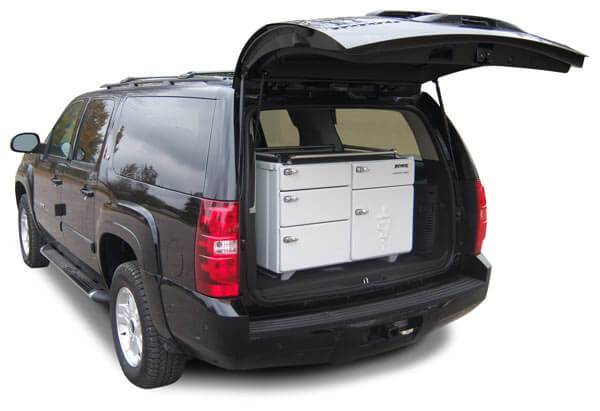

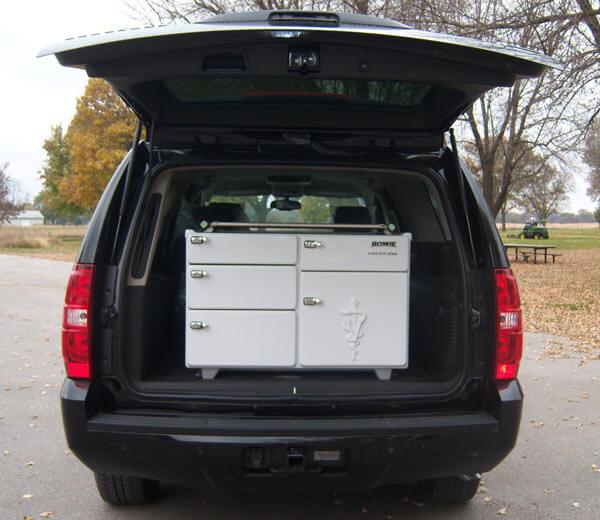

Slide-In Mobile Veterinary Clinic For SUVs & Minivans

Contact Us About the Diplomat II

Diplomat II Specs

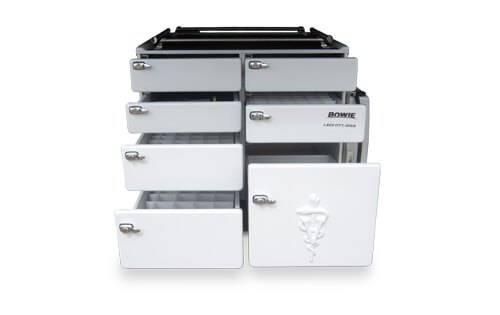

Base Equipment Includes: Fiberglass body with gel coat finish and top rails.

25.625" High x 31" Long x 37.625" Wide Base Unit.

Positive latching drawers with bearing glides. Individually locking drawers. Mounting attachment to facilitate quick removal.

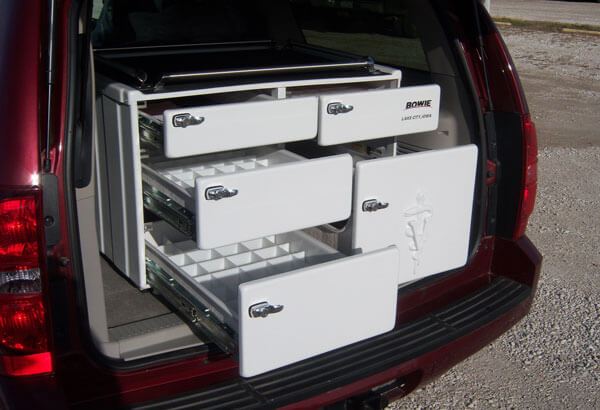

Drawer and Equipment Location:

Left Side:

  • Top: 15.375" x 28" x 3.75" drawer
  • Center: 15.375" x 28" x 6.875" drawer with 250cc dividers.
  • Lower: 15.375" x 28" x 8.375" drawer with 500cc dividers.

Right Side:

  • Top: 15.375" x 28" x 4.25" drawer with 100cc dividers.
  • Lower: 15.375" x 28" x 15" drawer for refrigerator or bulk storage area.

1100 Watt Night Heater with night cord

Dual Voltage Refrigerator with automatic switching relay

5 gallon Portable Water Tank with diaphragm pump

Cold Sterilization Tray

Pullout Fiberglass Work Surface 20" x 28"

Top Modules: Option of either size

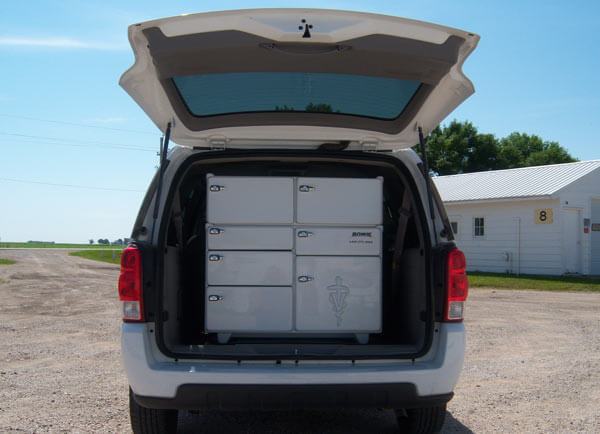

  • 10 3/8" High with Drawers: 15 3/8" x 28" x 8 3/8"

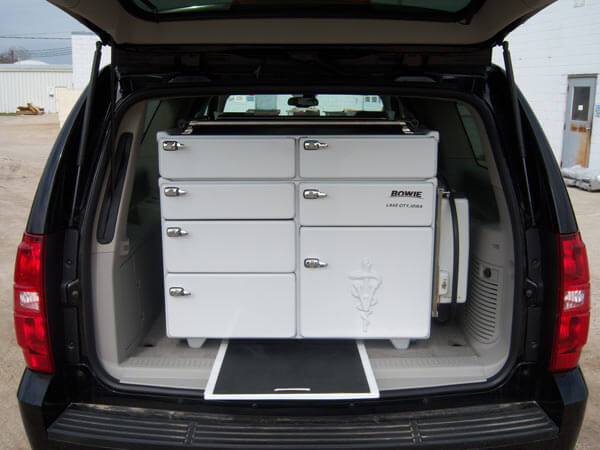

  • 6" High with Drawers: 15 3/8" x 28" x 4"

Dual Lock Controlled Substance Case with multiple sized padded bottle storage
