Portable Veterinary X-Ray | Bowie International

Digital Portable X-ray Units

The Latest In High Frequency Portable X-Rays

2 Year no fault labor service warranty with optional 3 year available. No matter what the cause, your unit is repaired with warranty coverage for up to 3 years.

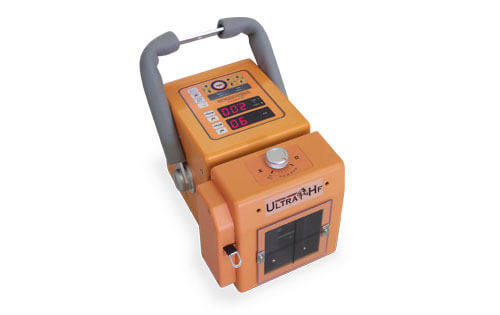

Ultra 9030HF Digital Portable X-ray Unit

Innovative designed Ultra-Light, high frequency portable x-ray unit features automated control systems which deal with weak power supply conditions automatically. Producing consistent quality films in the field or office, even while operating on 150' extension cord. This units 90kV, 30mA output produces more x-ray MR output than ordinary lightweights.

Ultra compact size: 10.5"L x 6" W x 6.75"H

Programmable technique memory settings
All soft touch controls with digital displays
Reversible display
Reversible face panel for small animal use on a table
Ready for any digital imager application

Ultra 9030HF Digital Portable X-ray Specs

Weight Class: Ultra Light Weight
Weight in Pounds: 16 lbs
Cabinet Design: Two Piece
Output Power in kW: 1.5 kW
Generator: High Frequency Inverter Type
Digital Display & Technique Selection: kV, mAs
kVp minimum to maximum with step selection: 40-90kV, 1 kV step
mAs minimum to maximum with 26 step selection: .32 to 30mAs
Time minimum to maximum: .02 to 3 seconds in 23 steps

mA Maximum: 30mA
Collimator: Cassette size indicator dials, lamp timer on during prep., off upon exposure
Laser Pointer: Dual Integrated Laser Pointers
Line Power Supply Compensation: Dynamic two stage, automatic line voltage and current
Line Power Supply Requirements: 120vAC or 240vAC
X-Ray Tube: Heavy Duty
Focal Spot: 1.2mm
Heating Unit: 70,000HU
Cooling Speed: 300HU/sec.

Target Angle: 16°
X-Ray Beam Aluminum Filtration in mm: 2.5mm Al equivalent @ 80kV
Exposure Switch Two Stage Prep. Exposure: Hand Switch (Optional Foot Switch)
Exposure Cord length in feet: 12 ft.
Power Cord length in feet: 20 ft.
Tape Measure: Heavy Duty
Carry Case Size: 10"H x 12"W x 18.5"L

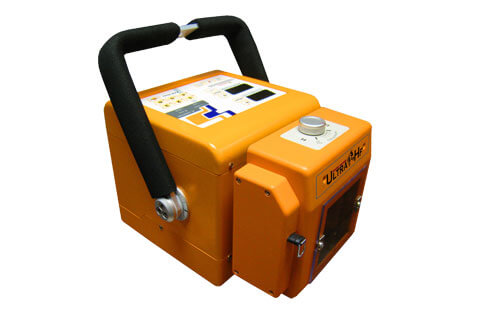

Ultra 12040HF Digital Portable X-ray Unit

"ULTRA 12040HF" is the most compact sized, lightest, highest powered, 120kV ultra light, highly efficient portable designed especially for the VETERINARY practitioner. It features 40-120kV, in 1kV increments and with its ripple-free HFG system, you can shoot up to 120kV, 40mA with full logic control operation. It also provides high resolution imaging at lower dosages.

Ultra compact size: 13"L x 9.5"W x 8"H

Programmable technique memory settings
All soft touch controls with digital displays
Reversible display
Reversible face panel for small animal use on a table
Ready for any digital imager application

Ultra 12040HF Digital Portable X-ray Unit Specs

Weight Class: Ultra Light Weight
Weight in Pounds: 25 lbs
Cabinet Design: One Piece with external collimator
Output Power in kW: 2.8 kW
Generator: High Frequency, 70kHz inverter type
Digital Display & Technique Selection: kV, mAs, time
kVp minimum to maximum with step selection: 40-120kV, 1 kV step
mAs minimum to maximum with 26 step selection: 0.4 to 100mAs
Time minimum to maximum: 0.011 to 8 seconds

mA Maximum: 40 mA based on kVp selected
Collimator: Cassette size indicator dials, lamp timer on during prep., off after exposure
Laser Pointer: Dual Integrated Laser Pointers
Line Power Supply Compensation: Dynamic two stage, automatic line voltage and current
Line Power Supply Requirements: 120 Volts
X-Ray Tube: Toshiba Model D-125
Focal Spot: 1.2mm
Heating Unit: 50,000HU
Cooling Speed: 350HU/sec.

Target Angle: 16°
X-Ray Beam Aluminum Filtration in mm: 1mm Al equivalent @ 90kV
Exposure Switch Two Stage Prep. Exposure: Hand Switch (Optional Foot Switch)
Exposure Cord length in feet: 12 ft.
Power Cord length in feet: 20 ft.
Tape Measure: Heavy Duty
Carry Case Size: 12"H x 13"W x 17"L
